58

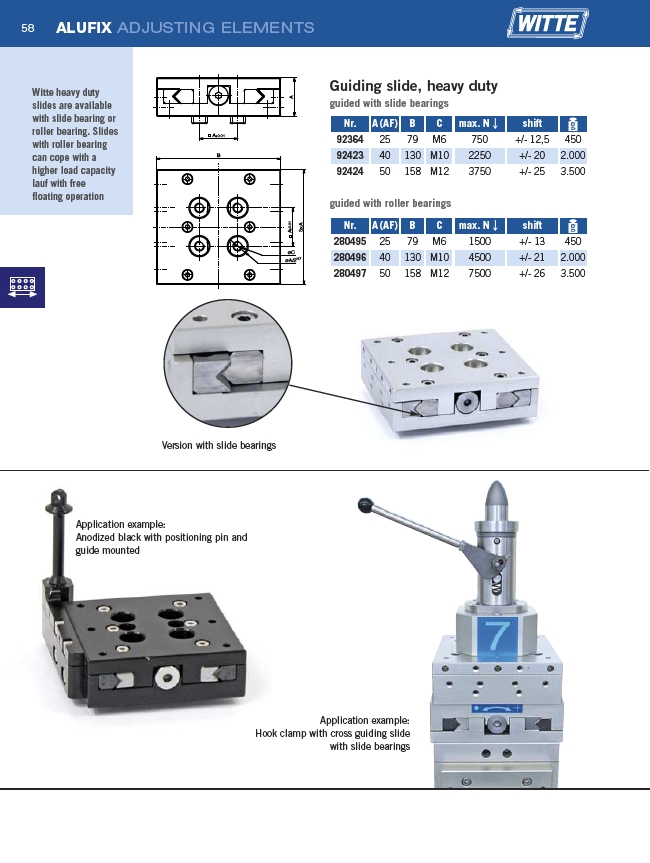

ALUFIX ADJUSTING ELEMENTS
������������
��
������
��
������������
����
������������
Guiding slide, heavy duty
guided with slide bearings
Nr. A (AF) B C max. N shift
92364 25 79 M6 750 +/- 12,5 450
92423 40 130 M10 2250 +/- 20 2.000
92424 50 158 M12 3750 +/- 25 3.500
guided with roller bearings
Nr. A (AF) B C max. N shift
280495 25 79 M6 1500 +/- 13 450
280496 40 130 M10 4500 +/- 21 2.000
280497 50 158 M12 7500 +/- 26 3.500
Version with slide bearings
Witte heavy duty
slides are available
with slide bearing or
roller bearing. Slides
with roller bearing
can cope with a
higher load capacity
lauf with free
floating operation
Application example:
Anodized black with positioning pin and
guide mounted
Application example:
Hook clamp with cross guiding slide
with slide bearings
