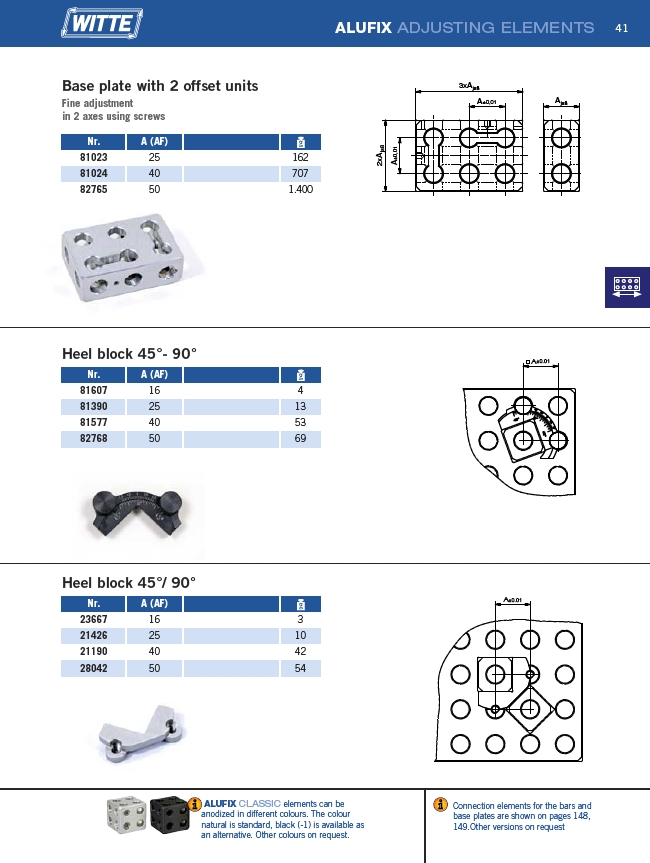

ALUFIX ADJUSTING ELEMENTS
3xAjs8
A±0,01
2xAjs8
A±0,01
Ajs8
Base plate with 2 offset units
Fine adjustment
in 2 axes using screws
Nr. A (AF)
81023 25 162
81024 40 707
82765 50 1.400
������������
Nr. A (AF)
81607 16 4
81390 25 13
81577 40 53
82768 50 69
������������ Nr. A (AF)
23667 16 3
21426 25 10
21190 40 42
28042 50 54
Connection elements for the bars and
base plates are shown on pages 148,
149.Other versions on request
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
