131
ALUFIX CLASSIC elements can be anodized in
different colours. The colour natural is standard, black (-1)
is available as an alternative. Other colours on request.

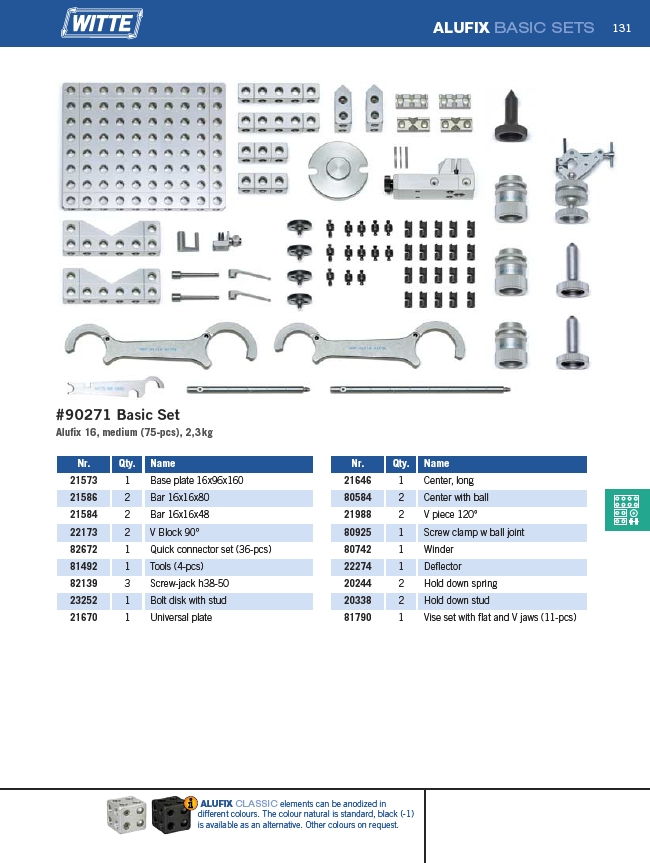

ALUFIX BASIC SETS
#90271 Basic Set
Alufix 16, medium (75-pcs), 2,3 kg
Nr. Qty. Name
21573 1 Base plate 16x96x160
21586 2 Bar 16x16x80
21584 2 Bar 16x16x48
22173 2 V Block 90°
82672 1 Quick connector set (36-pcs)
81492 1 Tools (4-pcs)
82139 3 Screw-jack h38-50
23252 1 Bolt disk with stud
21670 1 Universal plate
Nr. Qty. Name
21646 1 Center, long
80584 2 Center with ball
21988 2 V piece 120°
80925 1 Screw clamp w ball joint
80742 1 Winder
22274 1 Deflector
20244 2 Hold down spring
20338 2 Hold down stud
81790 1 Vise set with flat and V jaws (11-pcs)
