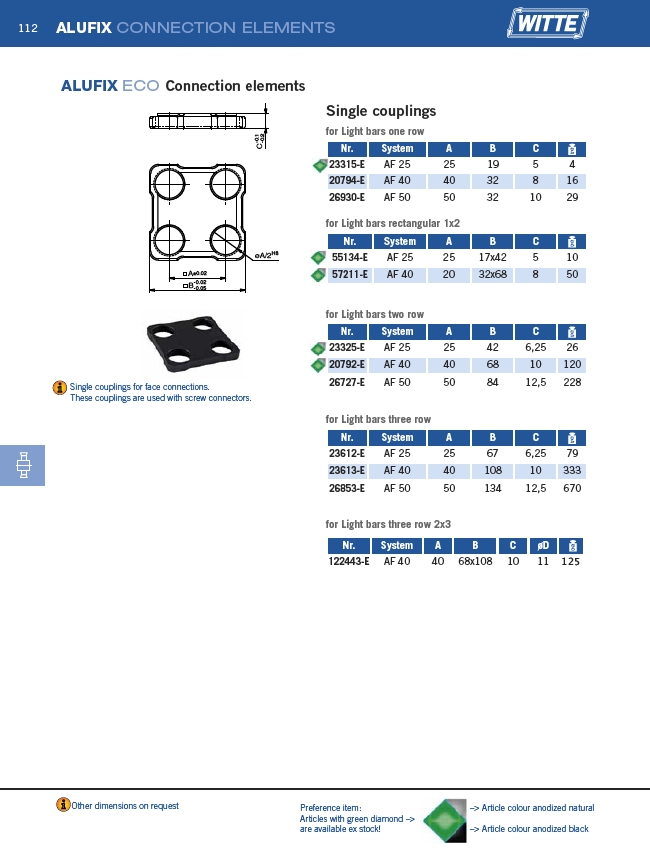

ALUFIX CONNECTION ELEMENTS
������������
����������
����������
��������
������������
������������
Single couplings
for Light bars one row
Nr. System A B C
23315-E AF 25 25 19 5 4
20794-E AF 40 40 32 8 16
26930-E AF 50 50 32 10 29
for Light bars rectangular 1x2
Nr. System A B C
55134-E AF 25 25 17x42 5 10
57211-E AF 40 20 32x68 8 50
for Light bars two row
Nr. System A B C
23325-E AF 25 25 42 6,25 26
20792-E AF 40 40 68 10 120
26727-E AF 50 50 84 12,5 228
Nr. System A B C
23612-E AF 25 25 67 6,25 79
23613-E AF 40 40 108 10 333
26853-E AF 50 50 134 12,5 670
Nr. System A B C øD
122443-E AF 40 40 68x108 10 11 125
ALUFIX ECO Connection elements
Single couplings for face connections.
These couplings are used with screw connectors.
for Light bars three row
for Light bars three row 2x3
Other dimensions on request Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
