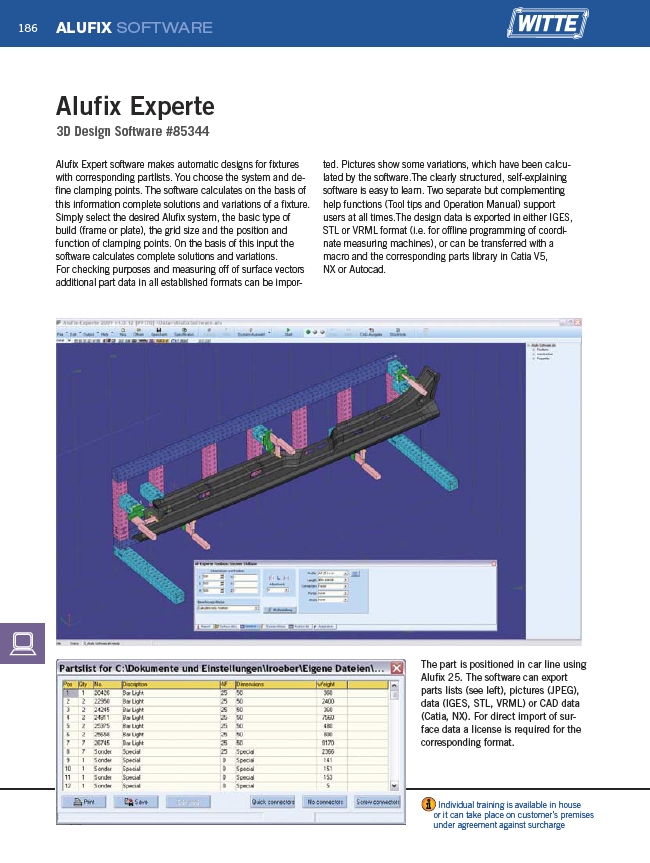

186 ALUFIX SOFTWARE
3D Design Software #85344
Individual training is available in house
or it can take place on customer’s premises
under agreement against surcharge
Alufix Expert software makes automatic designs for fixtures
with corresponding partlists. You choose the system and define
clamping points. The software calculates on the basis of
this information complete solutions and variations of a fixture.
Simply select the desired Alufix system, the basic type of
build (frame or plate), the grid size and the position and
function of clamping points. On the basis of this input the
software calculates complete solutions and variations.
For checking purposes and measuring off of surface vectors
additional part data in all established formats can be imported.
Pictures show some variations, which have been calculated
by the software.The clearly structured, self-explaining
software is easy to learn. Two separate but complementing
help functions (Tool tips and Operation Manual) support
users at all times.The design data is exported in either IGES,
STL or VRML format (i.e. for offline programming of coordinate
measuring machines), or can be transferred with a
macro and the corresponding parts library in Catia V5,
NX or Autocad.
Alufix Experte
The part is positioned in car line using
Alufix 25. The software can export
parts lists (see left), pictures (JPEG),
data (IGES, STL, VRML) or CAD data
(Catia, NX). For direct import of surface
data a license is required for the
corresponding format.
