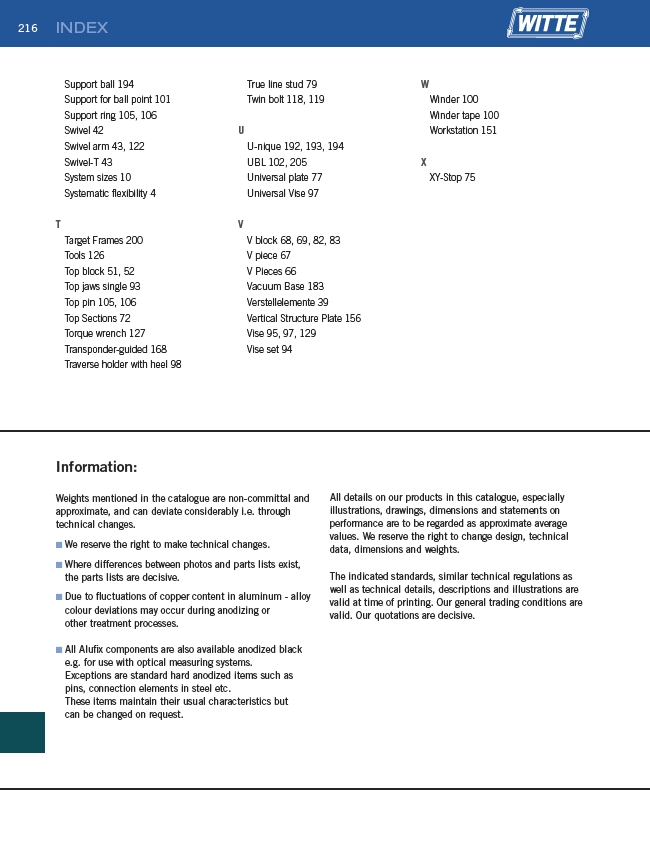

216 INDEX
Support ball 194
Support for ball point 101
Support ring 105, 106
Swivel 42
Swivel arm 43, 122
Swivel-T 43
System sizes 10
Systematic flexibility 4
T
Target Frames 200
Tools 126
Top block 51, 52
Top jaws single 93
Top pin 105, 106
Top Sections 72
Torque wrench 127
Transponder-guided 168
Traverse holder with heel 98
True line stud 79
Twin bolt 118, 119
U
U-nique 192, 193, 194
UBL 102, 205
Universal plate 77
Universal Vise 97
V
V block 68, 69, 82, 83
V piece 67
V Pieces 66
Vacuum Base 183
Verstellelemente 39
Vertical Structure Plate 156
Vise 95, 97, 129
Vise set 94
W
Winder 100
Winder tape 100
Workstation 151
X
XY-Stop 75
Information:
Weights mentioned in the catalogue are non-committal and
approximate, and can deviate considerably i.e. through
technical changes.
We reserve the right to make technical changes.
Where differences between photos and parts lists exist,
the parts lists are decisive.
Due to fluctuations of copper content in aluminum - alloy
colour deviations may occur during anodizing or
other treatment processes.
All Alufix components are also available anodized black
e.g. for use with optical measuring systems.
Exceptions are standard hard anodized items such as
pins, connection elements in steel etc.
These items maintain their usual characteristics but
can be changed on request.
All details on our products in this catalogue, especially
illustrations, drawings, dimensions and statements on
performance are to be regarded as approximate average
values. We reserve the right to change design, technical
data, dimensions and weights.
The indicated standards, similar technical regulations as
well as technical details, descriptions and illustrations are
valid at time of printing. Our general trading conditions are
valid. Our quotations are decisive.
