Nr. A B C D E F min.ø max.ø
82252 M24x1 32 50 26 15,5 71,5 6 20 60
79
��

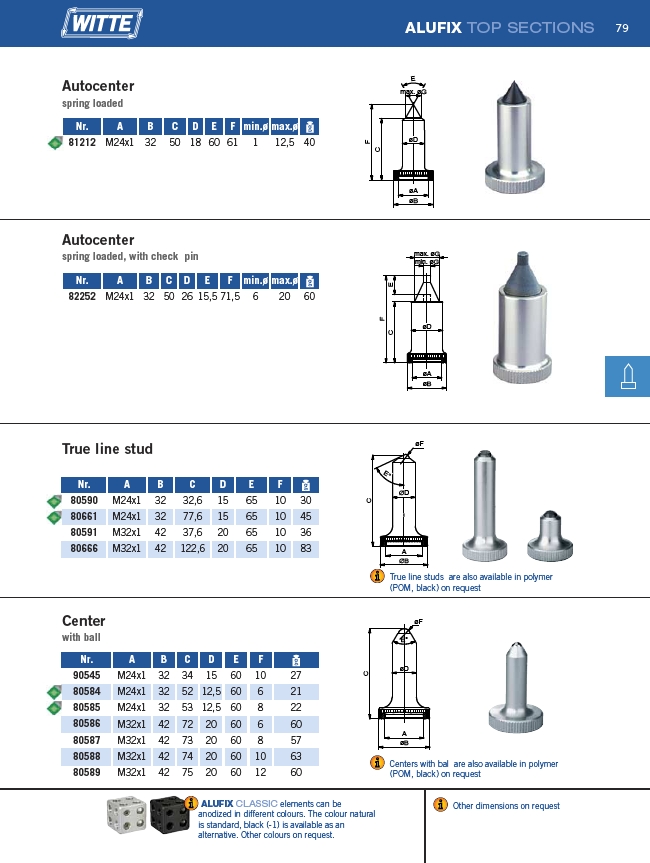

ALUFIX TOP SECTIONS
����
����
����
����
����
����
��
����
����
��
��
����
����
����
����
����
��
��
�������� ����
����
��
�������� ����
��
��
��
�������� ����
Nr. A B C D E F min.ø max.ø
81212 M24x1 32 50 18 60 61 1 12,5 40
Nr. A B C D E F
80590 M24x1 32 32,6 15 65 10 30
80661 M24x1 32 77,6 15 65 10 45
80591 M32x1 42 37,6 20 65 10 36
80666 M32x1 42 122,6 20 65 10 83
Nr. A B C D E F
90545 M24x1 32 34 15 60 10 27
80584 M24x1 32 52 12,5 60 6 21
80585 M24x1 32 53 12,5 60 8 22
80586 M32x1 42 72 20 60 6 60
80587 M32x1 42 73 20 60 8 57
80588 M32x1 42 74 20 60 10 63
80589 M32x1 42 75 20 60 12 60
True line studs are also available in polymer
(POM, black) on request
Centers with bal are also available in polymer
(POM, black) on request
ALUFIX CLASSIC elements can be Other dimensions on request
anodized in different colours. The colour natural
is standard, black (-1) is available as an
alternative. Other colours on request.
Autocenter
spring loaded
Autocenter
spring loaded, with check pin
True line stud
Center
with ball
