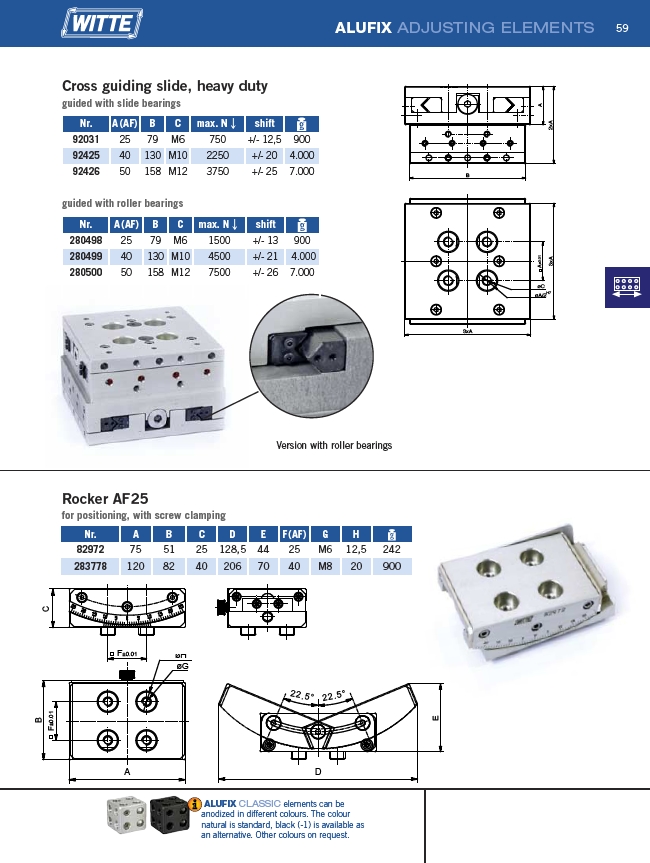

59
ALUFIX ADJUSTING ELEMENTS
������
������������
����
������������
������
������
��
��
guided with roller bearings
Version with roller bearings
Rocker AF25
for positioning, with screw clamping
Nr. A B C D E F (AF) G H
82972 75 51 25 128,5 44 25 M6 12,5 242
283778 120 82 40 206 70 40 M8 20 900
��
������������
��
��
������������
����
����
����������
����������
��
��
Cross guiding slide, heavy duty
guided with slide bearings
Nr. A (AF) B C max. N shift
92031 25 79 M6 750 +/- 12,5 900
92425 40 130 M10 2250 +/- 20 4.000
92426 50 158 M12 3750 +/- 25 7.000
Nr. A (AF) B C max. N shift
280498 25 79 M6 1500 +/- 13 900
280499 40 130 M10 4500 +/- 21 4.000
280500 50 158 M12 7500 +/- 26 7.000
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
