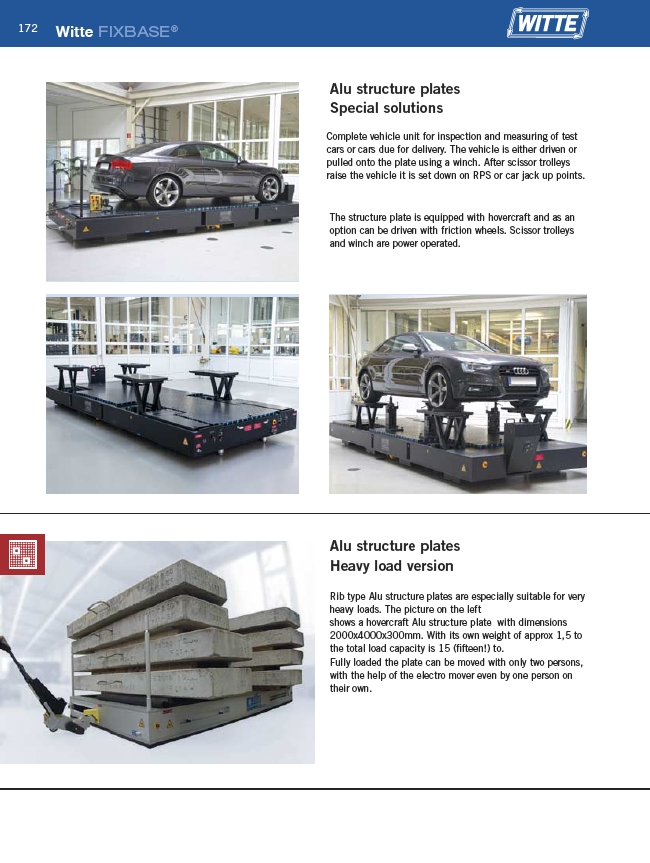

172 Witte FIXBASE®
Alu structure plates
Special solutions
Complete vehicle unit for inspection and measuring of test
cars or cars due for delivery. The vehicle is either driven or
pulled onto the plate using a winch. After scissor trolleys
raise the vehicle it is set down on RPS or car jack up points.
The structure plate is equipped with hovercraft and as an
option can be driven with friction wheels. Scissor trolleys
and winch are power operated.
Alu structure plates
Heavy load version
Rib type Alu structure plates are especially suitable for very
heavy loads. The picture on the left
shows a hovercraft Alu structure plate with dimensions
2000x4000x300mm. With its own weight of approx 1,5 to
the total load capacity is 15 (fifteen!) to.
Fully loaded the plate can be moved with only two persons,
with the help of the electro mover even by one person on
their own.
