Screw-jack with anti-turn lock
D32 and D42
E Nr. A min. A max. B C D E
A
B
B
B B
A
ØC ØC
Nr. A/min A/max B C D E
90614 38 50 M24x1 32 8 M 4 65
82139 38 50 M24x1 32 12,5 M 6 65
82033 70 105 M24x1 32 12,5 M 6 120
82085 110 170 M32x1 42 20 M 10 330
Nr. A B C
20628 6 M24x1 32 12
23286 12 M24x1 32 25
123461 15 M24x1 32 32
22856 100 M24x1 32 210
123462 15 M32x1 42 34
21658 100 M32x1 42 225
øDH7
A min./ A max.
B
B
øC
285201 50 70 M24x1 32 12,5 M6 78
285202 70 105 M24x1 32 12,5 M6 120
285203 105 170 M32x1 42 20 M10 310

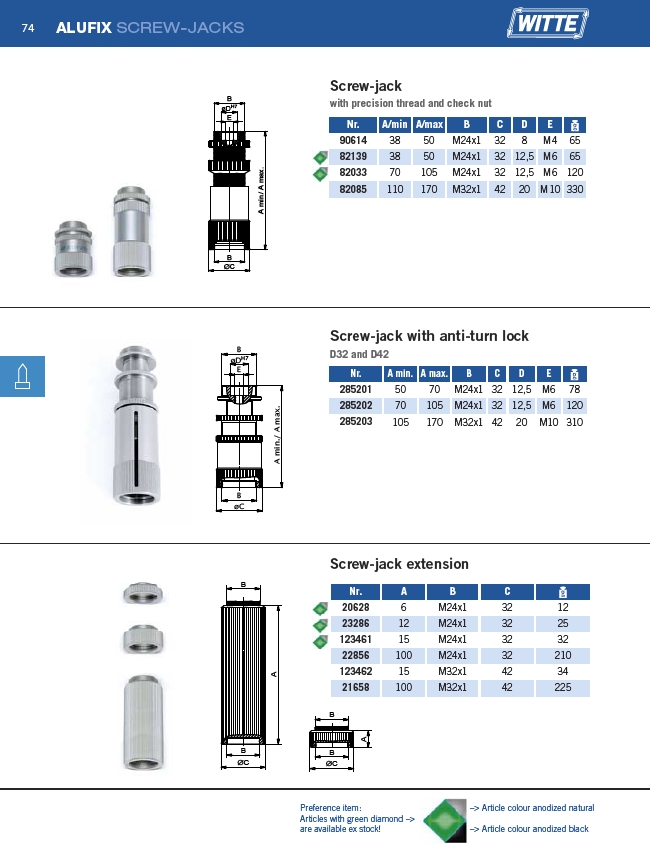

ALUFIX SCREW-JACKS
Screw-jack
with precision thread and check nut
Screw-jack extension
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
