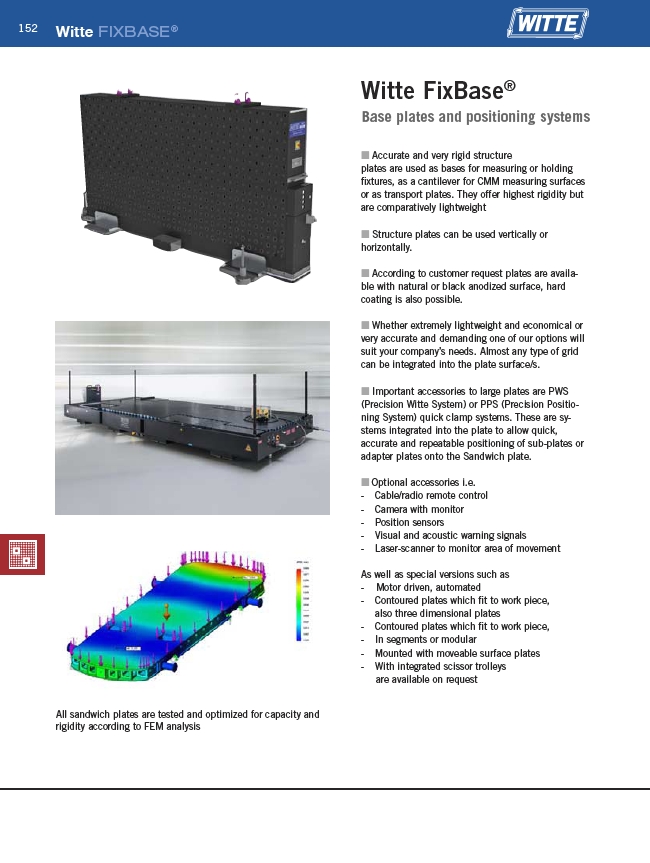

152 Witte FIXBASE®
All sandwich plates are tested and optimized for capacity and
rigidity according to FEM analysis
Witte FixBase®
Base plates and positioning systems
Accurate and very rigid structure
plates are used as bases for measuring or holding
fixtures, as a cantilever for CMM measuring surfaces
or as transport plates. They offer highest rigidity but
are comparatively lightweight
Structure plates can be used vertically or
horizontally.
According to customer request plates are available
with natural or black anodized surface, hard
coating is also possible.
Whether extremely lightweight and economical or
very accurate and demanding one of our options will
suit your company’s needs. Almost any type of grid
can be integrated into the plate surface/s.
Important accessories to large plates are PWS
(Precision Witte System) or PPS (Precision Positioning
System) quick clamp systems. These are systems
integrated into the plate to allow quick,
accurate and repeatable positioning of sub-plates or
adapter plates onto the Sandwich plate.
Optional accessories i.e.
- Cable/radio remote control
- Camera with monitor
- Position sensors
- Visual and acoustic warning signals
- Laser-scanner to monitor area of movement
As well as special versions such as
- Motor driven, automated
- Contoured plates which fit to work piece,
also three dimensional plates
- Contoured plates which fit to work piece,
- In segments or modular
- Mounted with moveable surface plates
- With integrated scissor trolleys
are available on request
