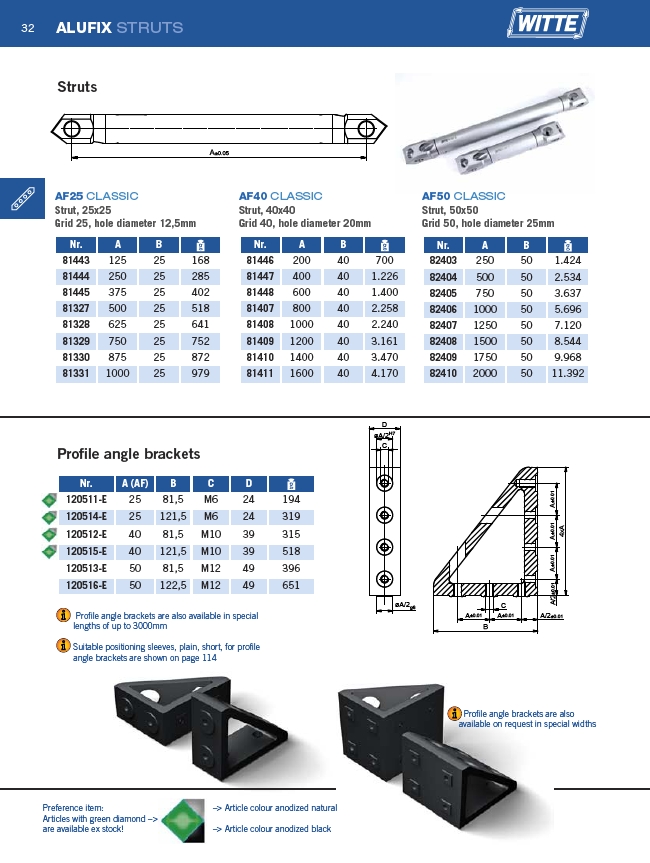

32
Nr. A B
81443 125 25 168
81444 250 25 285
81445 375 25 402
81327 500 25 518
81328 625 25 641
81329 750 25 752
81330 875 25 872
81331 1000 25 979
Nr. A B
81446 200 40 700
81447 400 40 1.226
81448 600 40 1.400
81407 800 40 2.258
81408 1000 40 2.240
81409 1200 40 3.161
81410 1400 40 3.470
81411 1600 40 4.170
Nr. A B
82403 250 50 1.424
82404 500 50 2.534
82405 750 50 3.637
82406 1000 50 5.696
82407 1250 50 7.120
82408 1500 50 8.544
82409 1750 50 9.968
82410 2000 50 11.392
������������
��
������������
����������������
����������������
������������
��
��
������������
������������
������
��
������������
������������ ������������
Profile angle brackets
Nr. A (AF) B C D
120511-E 25 81,5 M6 24 194
120514-E 25 121,5 M6 24 319
120512-E 40 81,5 M10 39 315
120515-E 40 121,5 M10 39 518
120513-E 50 81,5 M12 49 396
120516-E 50 122,5 M12 49 651
Profile angle brackets are also
available on request in special widths
ALUFIX STRUTS
AF25 CLASSIC
Strut, 25x25
Grid 25, hole diameter 12,5mm
AF40 CLASSIC
Strut, 40x40
Grid 40, hole diameter 20mm
AF50 CLASSIC
Strut, 50x50
Grid 50, hole diameter 25mm
Struts
Profile angle brackets are also available in special
lengths of up to 3000mm
Suitable positioning sleeves, plain, short, for profile
angle brackets are shown on page 114
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
