ALUFIX EUROFIX 185

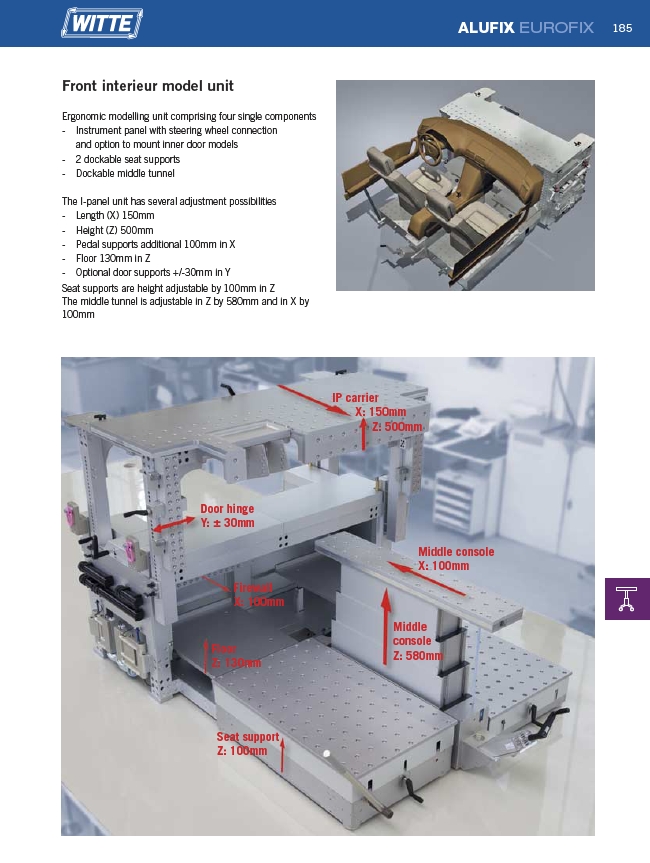

Front interieur model unit
Ergonomic modelling unit comprising four single components
- Instrument panel with steering wheel connection
and option to mount inner door models
- 2 dockable seat supports
- Dockable middle tunnel
The I-panel unit has several adjustment possibilities
- Length (X) 150mm
- Height (Z) 500mm
- Pedal supports additional 100mm in X
- Floor 130mm in Z
- Optional door supports +/-30mm in Y
Seat supports are height adjustable by 100mm in Z
The middle tunnel is adjustable in Z by 580mm and in X by
100mm
Door hinge
Y: ± 30mm
Firewall
X: 100mm
Floor
Z: 130mm
IP carrier
X: 150mm
Z: 500mm
Middle
console
Z: 580mm
Seat support
Z: 100mm
Middle console
X: 100mm
