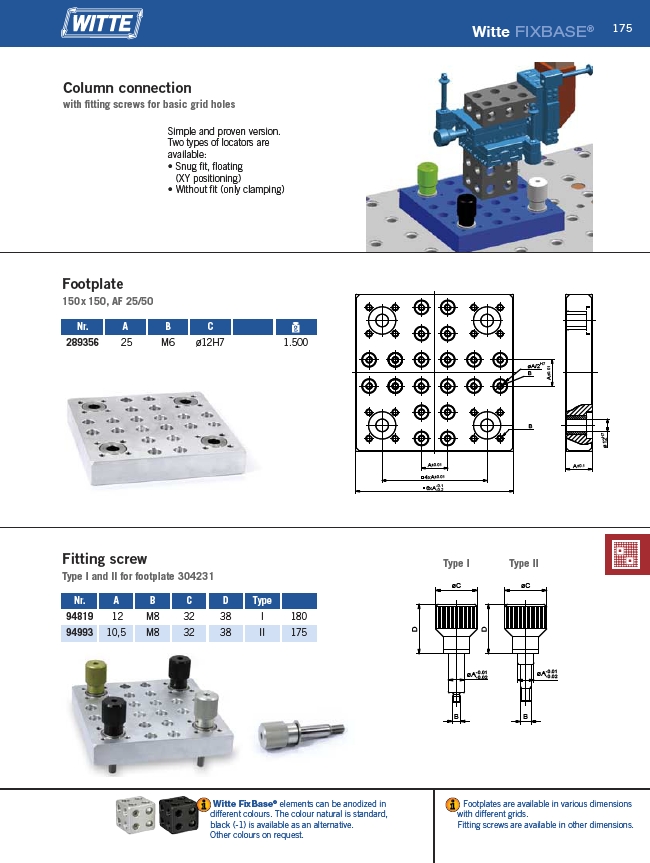

Witte FIXBASE® 175
��������������
��������
����������
������������
��
��
������������
������������
��
����
����������������
����������
Type ���������� I Type ����������
II
���������� ��������������
��������������
�� ��
����������
��
����
��
����
Column connection
with fitting screws for basic grid holes
Footplate
150 x 150, AF 25/50
Simple and proven version.
Two types of locators are
available:
• Snug fit, floating
(XY positioning)
• Without fit (only clamping)
Nr. A B C
289356 25 M6 ø12H7 1.500
Fitting screw
Type I and II for footplate 304231
Nr. A B C D Type
94819 12 M8 32 38 I 180
94993 10,5 M8 32 38 II 175
Witte FixBase® elements can be anodized in
different colours. The colour natural is standard,
black (-1) is available as an alternative.
Other colours on request.
Footplates are available in various dimensions
with different grids.
Fitting screws are available in other dimensions.
