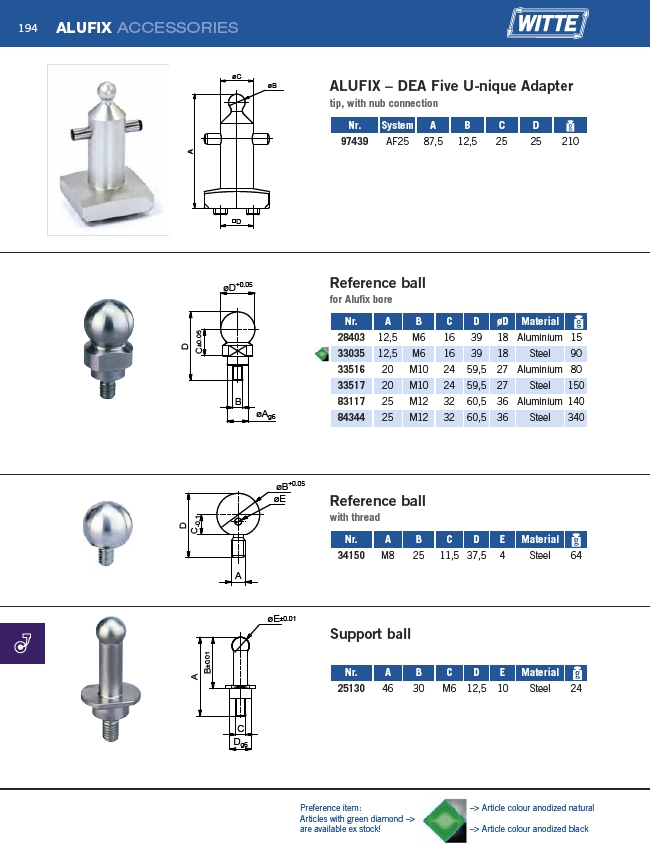

194
��
��������
����
��������������
��
������������
��
��������������
����
��
����������
��
������
��������������
��
������������
��
��
����
ALUFIX – DEA Five U-nique Adapter
tip, with nub connection
Nr. System A B C D
97439 AF25 87,5 12,5 25 25 210
ALUFIX ACCESSORIES
Reference ball
for Alufix bore
Nr. A B C D øD Material
28403 12,5 M6 16 39 18 Aluminium 15
33035 12,5 M6 16 39 18 Steel 90
33516 20 M10 24 59,5 27 Aluminium 80
33517 20 M10 24 59,5 27 Steel 150
83117 25 M12 32 60,5 36 Aluminium 140
84344 25 M12 32 60,5 36 Steel 340
Reference ball
with thread
Nr. A B C D E Material
34150 M8 25 11,5 37,5 4 Steel 64
Support ball
Nr. A B C D E Material
25130 46 30 M6 12,5 10 Steel 24
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
