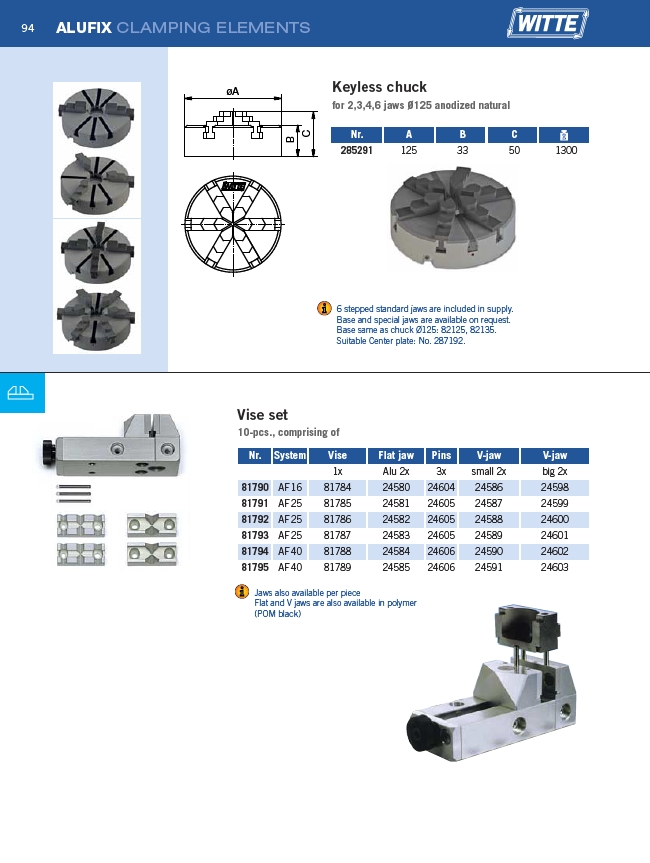

94
ALUFIX CLAMPING ELEMENTS
øA
B
C
Keyless chuck
for 2,3,4,6 jaws Ø125 anodized natural
Nr. A B C
285291 125 33 50 1300
6 stepped standard jaws are included in supply.
Base and special jaws are available on request.
Base same as chuck Ø125: 82125, 82135.
Suitable Center plate: No. 287192.
Vise set
10-pcs., comprising of
Nr. System Vise Flat jaw Pins V-jaw V-jaw
1x Alu 2x 3x small 2x big 2x
81790 AF 16 81784 24580 24604 24586 24598
81791 AF 25 81785 24581 24605 24587 24599
81792 AF 25 81786 24582 24605 24588 24600
81793 AF 25 81787 24583 24605 24589 24601
81794 AF 40 81788 24584 24606 24590 24602
81795 AF 40 81789 24585 24606 24591 24603
Jaws also available per piece
Flat and V jaws are also available in polymer
(POM black)
