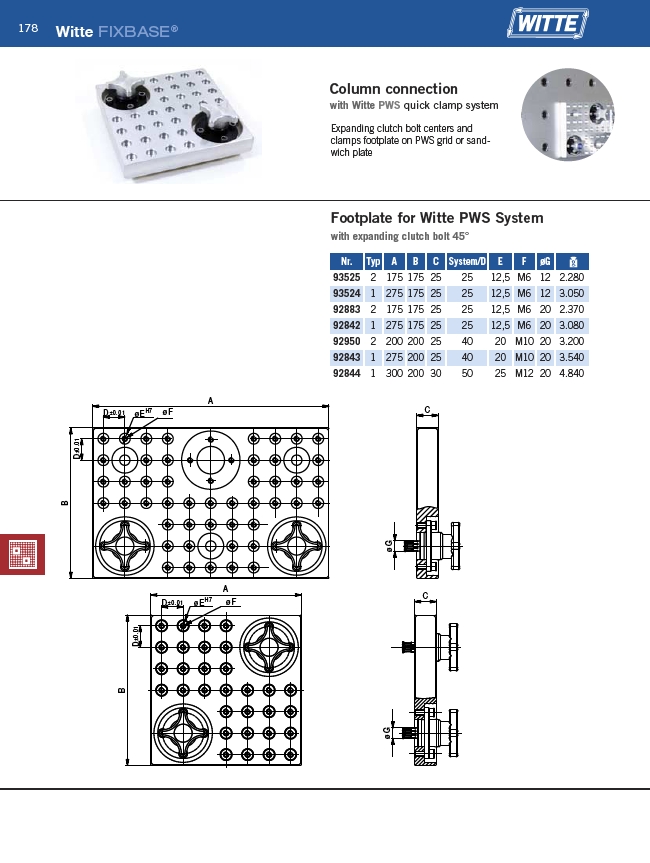

178 Witte FIXBASE®
A
Column connection
with Witte PWS quick clamp system
Expanding clutch bolt centers and
clamps footplate on PWS grid or sandwich
Footplate for Witte PWS System
with expanding clutch bolt 45°
Nr. Typ A B C System/D E F øG
93525 2 175 175 25 25 12,5 M6 12 2.280
93524 1 275 175 25 25 12,5 M6 12 3.050
92883 2 175 175 25 25 12,5 M6 20 2.370
92842 1 275 175 25 25 12,5 M6 20 3.080
92950 2 200 200 25 40 20 M10 20 3.200
92843 1 275 200 25 40 20 M10 20 3.540
92844 1 300 200 30 50 25 M12 20 4.840
D±0.01 øEH7 øF C
D±0.01
B
øG
D±0.01 øEH7 øF
D±0.01
B
A
C
øG
plate
