max ø
90°
4xAjs8
A±0,01
2xAjs8
A/2±0,01 A±0,01 øA/2H7
A/2±0,01
Ajs8
68
Nr. A(AF) max. ø
21991 16 45 51
21992 25 70 185
21272 40 113 189
28173 50 142 1.362
Nr. A(AF) max. ø
80975 25 70 251
81511 40 113 1.115
82785 50 142 1.326
Nr. A(AF) max. ø
81508 25 70 203
81513 40 113 1.115
82784 50 142 1.326

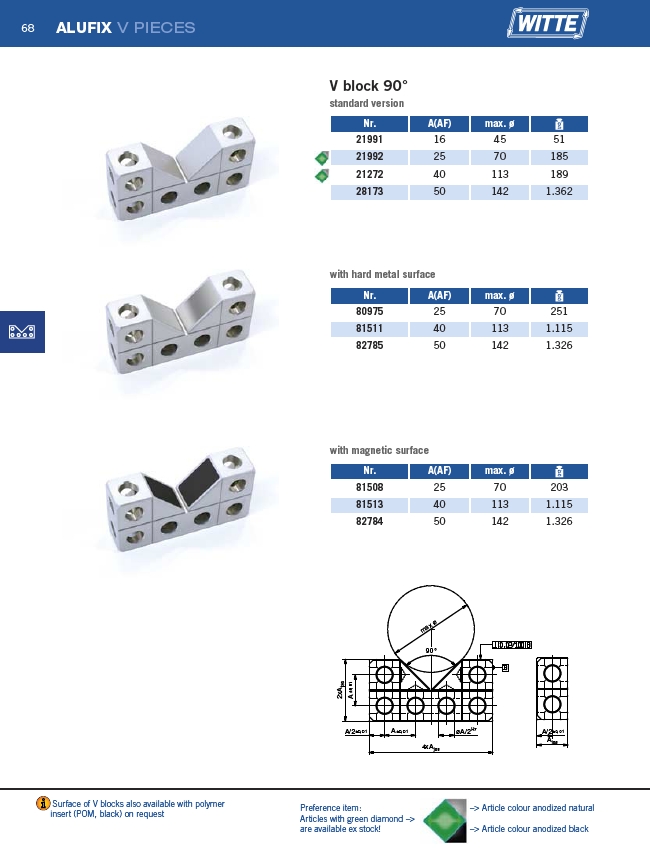

ALUFIX V PIECES
Surface of V blocks also available with polymer
insert (POM, black) on request
V block 90°
standard version
with hard metal surface
with magnetic surface
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
