84
����
������
����
��
����
����
��
��
��
����
Stop M4
for V-piece
Nr. A B C D
80947 M24x1 22 55° 32 24
81588 M12x0,5 10 55° 16 6
Nr. A B C D E
22647 M24x1 32 M4 8,2 13 21
24241 M12x0,5 16 - - 5 12
M4 thread can be connected with studs from FX range
as location pin
Nr. A B C
22644 M24x1 ø32 10 10
B
B
øA
C
A
D
XXXXX
��������������
C
B
Nr. A B C D
285200 92 36 8 M4 12
Joint for Screw-jacks
with knurled serrations grid 6°or 4°
Nr. A B C Grid
285206 32 24x1 40 4° 94
285207 42 32x1 60 6° 232

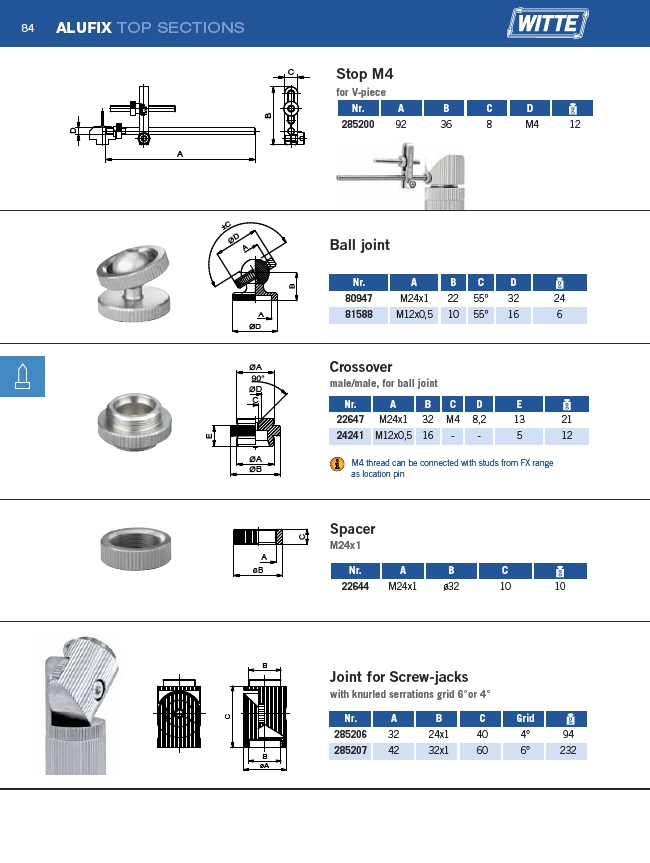

ALUFIX TOP SECTIONS
Ball joint
Crossover
male/male, for ball joint
Spacer
M24x1
