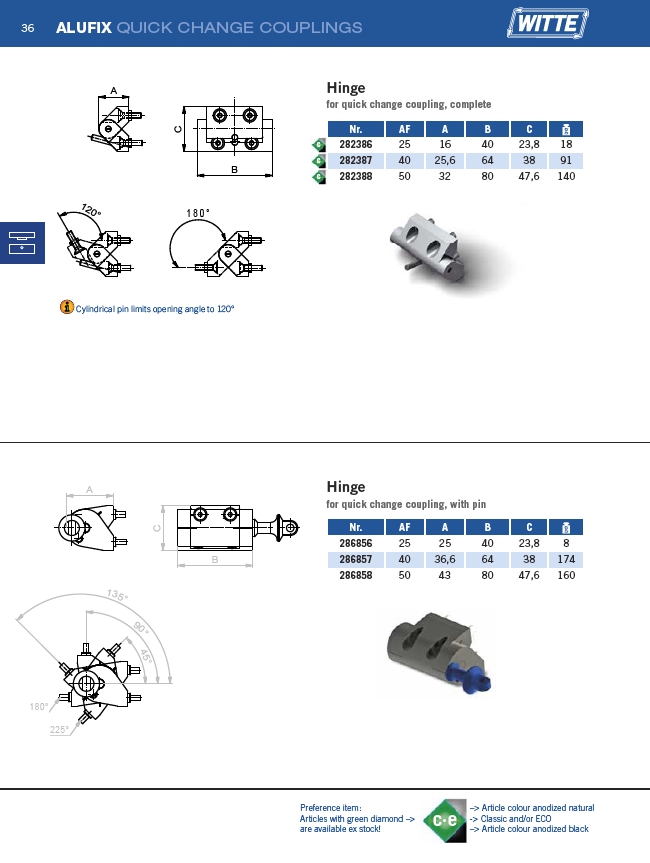

ALUFIX QUICK CHANGE COUPLINGS
��������
�� �� �� ��
��
��
��
������
������
��������
��������
��������
��
��
��
36
Nr. AF A B C
282386 25 16 40 23,8 18
282387 40 25,6 64 38 91
282388 50 32 80 47,6 140
Nr. AF A B C
286856 25 25 40 23,8 8
286857 40 36,6 64 38 174
286858 50 43 80 47,6 160
c·e
c
c
c
Cylindrical pin limits opening angle to 120°
Hinge
for quick change coupling, complete
Hinge
for quick change coupling, with pin
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
-> Classic and/or ECO
–> Article colour anodized black
