48
������������
������ �� �� ��
���������� ��
�� ��
������ �� �� ��
������������
Nr. A (AF) B C max. N
82939 25 75 25 300 486
90538 40 160 80 450 2.660
82821 50 200 100 600 5.523

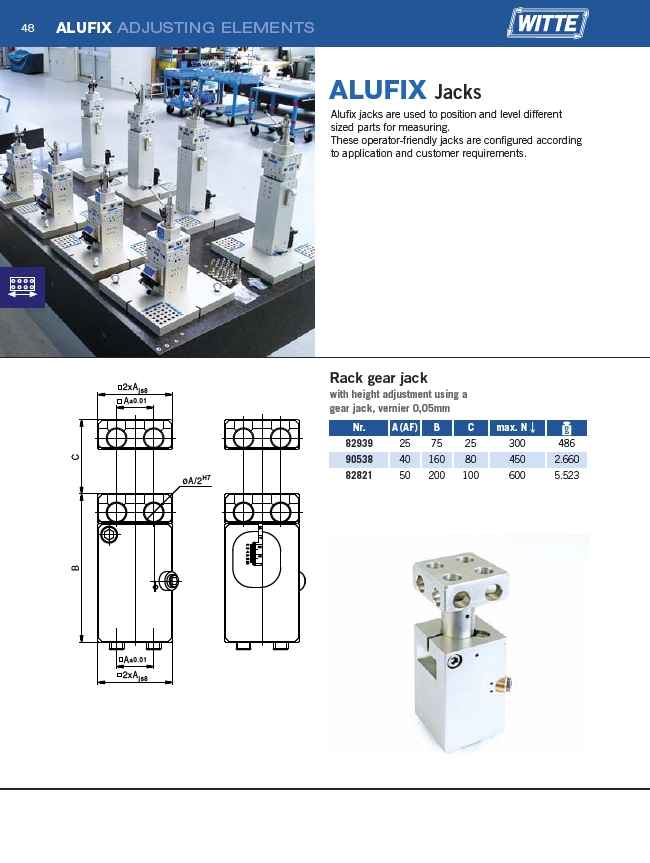

ALUFIX ADJUSTING ELEMENTS
ALUFIX Jacks
Alufix jacks are used to position and level different
sized parts for measuring.
These operator-friendly jacks are configured according
to application and customer requirements.
Rack gear jack
with height adjustment using a
gear jack, vernier 0,05mm
