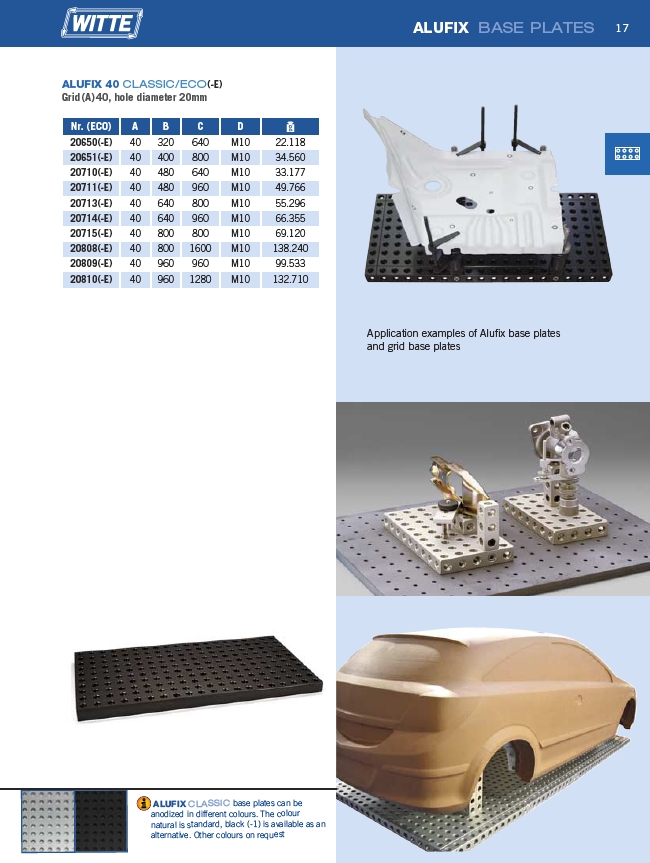

ALUFIX 40 CLASSIC/ECO(-E)
Grid (A) 40, hole diameter 20mm
Nr. (ECO) A B C D
20650(-E) 40 320 640 M10 22.118
20651(-E) 40 400 800 M10 34.560
20710(-E) 40 480 640 M10 33.177
20711(-E) 40 480 960 M10 49.766
20713(-E) 40 640 800 M10 55.296
20714(-E) 40 640 960 M10 66.355
20715(-E) 40 800 800 M10 69.120
20808(-E) 40 800 1600 M10 138.240
20809(-E) 40 960 960 M10 99.533
20810(-E) 40 960 1280 M10 132.710
ALUFIX BASE PLATES
ALUFIX CLASSIC base plates can be
anodized in different colours. The colour
natural is standard, black (-1) is available as an
alternative. Other colours on request
Application examples of Alufix base plates
and grid base plates
