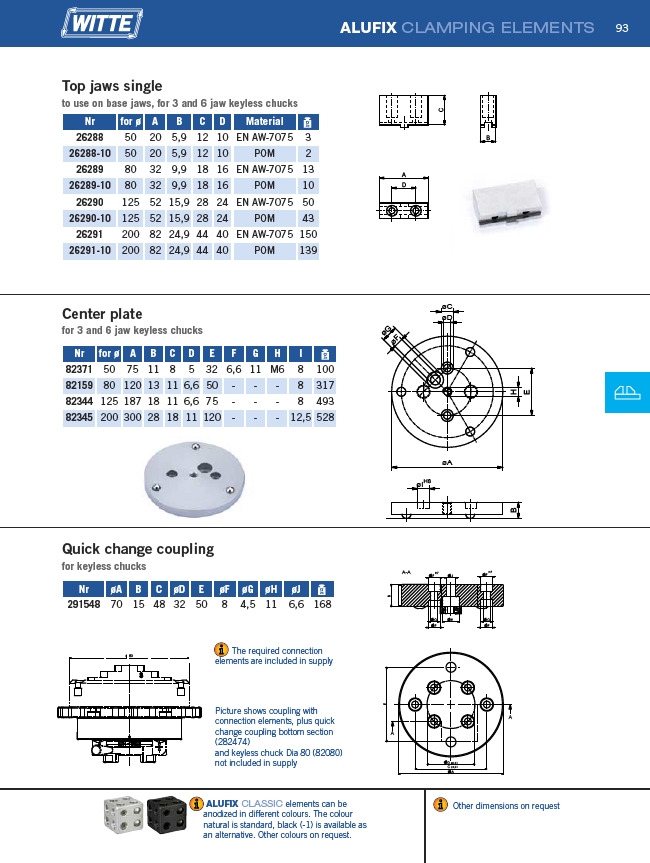

93
ALUFIX CLAMPING ELEMENTS
��
��
��
��
��
��������
����
��
����
����
����
����
��
�� �� ���� �� ����
�� ����������������
������
��
����
����
�� ��
����
�� ��
����
����
��
����
�� ������
�� ����
������
������ ��
������
����������
�� ����
��
��
Nr for ø A B C D Material
26288 50 20 5,9 12 10 EN AW-7075 3
26288-10 50 20 5,9 12 10 POM 2
26289 80 32 9,9 18 16 EN AW-7075 13
26289-10 80 32 9,9 18 16 POM 10
26290 125 52 15,9 28 24 EN AW-7075 50
26290-10 125 52 15,9 28 24 POM 43
26291 200 82 24,9 44 40 EN AW-7075 150
26291-10 200 82 24,9 44 40 POM 139
Nr for ø A B C D E F G H I
82371 50 75 11 8 5 32 6,6 11 M6 8 100
82159 80 120 13 11 6,6 50 - - - 8 317
82344 125 187 18 11 6,6 75 - - - 8 493
82345 200 300 28 18 11 120 - - - 12,5 528
Quick change coupling
for keyless chucks
Nr øA B C øD E øF øG øH øJ
291548 70 15 48 32 50 8 4,5 11 6,6 168
�� ������
The required connection
elements are included in supply
Picture shows coupling with
connection elements, plus quick
change coupling bottom section
(282474)
and keyless chuck Dia 80 (82080)
not included in supply
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Other dimensions on request
Top jaws single
to use on base jaws, for 3 and 6 jaw keyless chucks
Center plate
for 3 and 6 jaw keyless chucks
